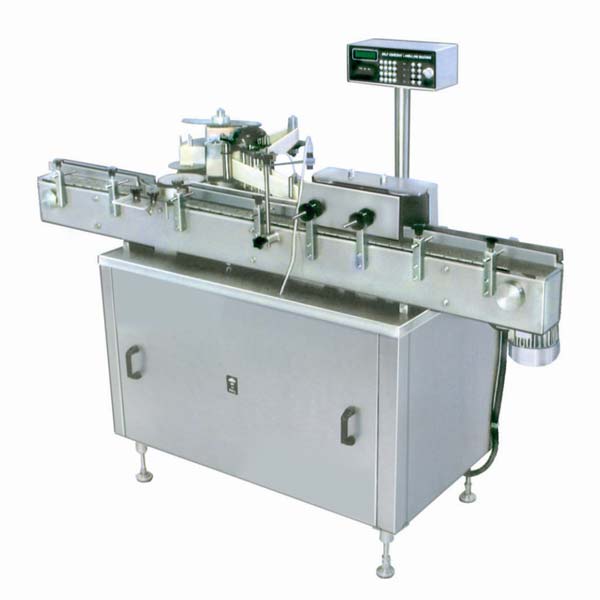

We are reputed suppliers of Automatic Self Adhesive Sticker Labelling Machine. The machine is designed to offer accuracy with sticker placement. The bottles get labelled the moment they come in position with the help of an internal sensor. The machine is efficient and can reduce your production hours by a significant amount. Affordable to purchase and maintain, we can customize the machine to meet your needs.
Specifications
| Labels Size. | - |
| Labelling direction Label Roll Diameter |
Left to right Maximum 400.mm. |
| - | |
| Label lengths | 20 mm to 200 mm |
| Max label stock [Roll] Diameter | 400 mm |
| Core Diameter Of label Stock [Roll] | 76 mm |
| Round Container Size | - |
| Diameter | 14 mm to 100 mm |
| Height | 30 mm to 180 mm |
| Electrical Components | 230 V, AC, 50 Hz |
| Main drive motor Make | 0.25 HP |
| RPM and Rating | 1440 RPM |
| Steeper Motor. | 6 V DC, 2 Ampere. |
| Gear box make [with variable speed] | Bonfiglioli |
| Product Sensor | Banner Make - Germany. |
| Label sensor | Banner Make - Germany. |
| Operating Panel | consist of PLC with micro processor |
| control. | |
| Utilities Required | - |
| Power supply | 440 V, 3 Phase, 50 Hz |
| Air supply | 4 kg / cm² [ For printing device] |
| MOC | - |
| Non contact parts | SS304 - 180 Grif matt finish |
| Gasket | Food Grade Silicone |
| All Piping | Food grade material |
| Overall Dimension | 1950 mm(L), 950 mm(W), Height 800 mm to 850 mm adjustable. |
